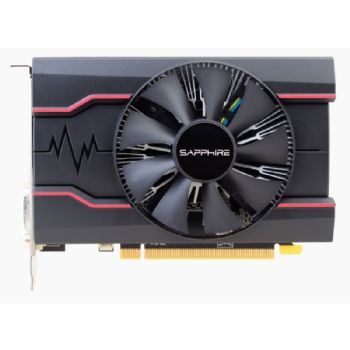

SAPPHIRE 11268-01-20G RX550 4GB 128B GDDR5 DVI-D HDMI DP AMD Ekran Kartı

RX 550 4G 128B GDDR5 DVID-HDMI-DP PULSE AMD EKRAN KARTI
GPU
512 Stream Processors
14 nm FinFET
4th Graphics Core Next (GCN)
1206 MHz Boost Engine Clock
Memory
128 bit Memory Bus
GDDR5 Memory Type
1500 MHz, 6000 MHz Effective
4 GB Size
BIOS Support
UEFI BIOS
Displays
Maximum 3 Outputs
Output
1 x DVI-D
1 x HDMI
1 x DisplayPort 1.4
Resolution
5120×2880 (60Hz) Pixel DisplayPort Resolution
2560x1600 (60Hz) Pixel Dual Link DVI Resolution
4096×2160 (60 Hz) HDMI Resolution
API
OpenGL® 4.5
OpenCL 2.0
DirectX® 12
Shader Model 5.0
Feature
FreeSync Technology
AMD Eyefinity
AMD Xconnect ready
DirectX™ 12 Optimized
HDR Ready
Frame Rate Target Control
Intelligent Fan Control III
Radeon Chill
Radeon Relive
Cooling
Single fan
Form Factor
1.5 Part Slot Occupied
158(L)X 112(W)X 28 (H) Dimension /mm
Power Consumption
<65W
OS
Windows 10 Windows 7
System Requirement
400 Watt Power Supply (Suggestion)
Blue-ray™ / HD DVD playback requires Blu-ray / HD DVD drive.
PCI Express® 2.0 or higher version based PC is required with one X16
lane graphics slot available on the motherboard in order for the card
to
to
be compatible with.
Specifications provided here are for guidance only. Please check with
your regional distributor or dealer for latest specifications.
Colors of PCB or other components may differ from those illustrated.
SAPPHIRE reserves the right to update or revise specifications without
prior notice.
All trademarks and logos are acknowledged as the property of their
respective holders.
İşlemci TipiAMD
Grafik İşlemciRX 550
Bellek Arayüzü128 bit
Ram (Sistem Belleği)4 GB
Bellek TipiGDDR5
HDMI1
DVI-D1
DVI-IYok
DP (Display Port)1
mDP (mini Display Port)Yok
VGA (Analog D-Sub)Yok
Sıvı SoğutmaYok
Çekirdek Hızı Aralığı1001 MHz - 1500 MHz
Bellek Hızı Aralığı (Efektif)5.000 - 10.000
Form FaktörNormal
Ekran Kartı Fan Sayısı1
Satış Garanti Süresi (ay)24
EAN4895106282148
