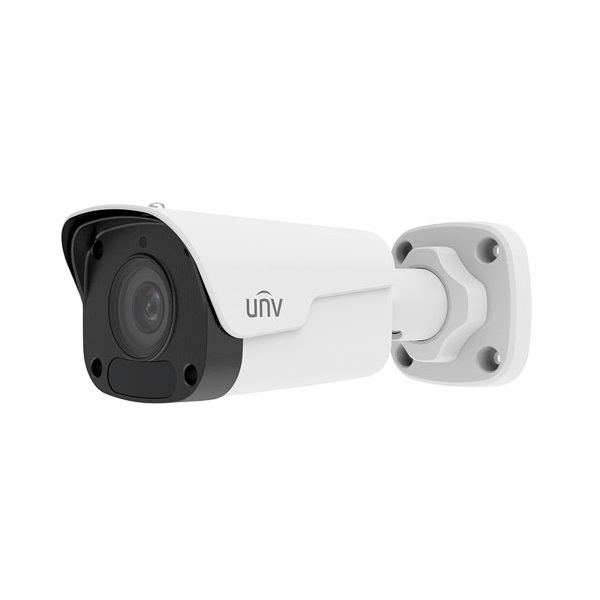

IPC2122LB-ADF28KM-G
IPC2122LB-ADF40KM-G
Camera
Sensor
1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens
2.8mm@F2.0
4.0mm@F2.0
DORI Distance
Lens (mm)
Detect (m)
Observe (m)
Recognize (m)
Identify (m)
2.8
42.0
16.8
8.4
4.2
4.0
60.0
24.0
12.0
6.0
Angle of View (H)
112.9°
91.2°
Angle of View (V)
59.1°
47.9°
Angle of View (O)
121.2°
95.9°
Adjustment Angle
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotate: 0° ~ 360°
Shutter
Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
Colour: 0.01Lux ( F2.0, AGC ON)
0Lux with IR
Day/Night
IR-cut filter with auto switch (ICR)
Digital Noise Reduction
2D/3D DNR
S/N
>52dB
IR Range
Up to 30m (98ft) IR range
Wavelength
850nm
IR On/Off Control
Auto/Manual
Defog
Digital Defog
WDR
120dB
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate
128 Kbps~6144 kbps
9:16 Corridor Mode
Supported
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
ROI
Up to 8 areas
Motion Detection
Up to 4 areas
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction
2D/3D DNR
Smart IR
Supported
Flip
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping
N/A
HLC
Supported
BLC
Supported
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API
Client
EZStation
EZView
EZLive
Web Browser
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Audio
Audio Compression
G.711
Suppression
Supported
Sampling Rate
8KHZ
Storage
Edge Storage
Micro SD, up to 128GB
Network Storage
ANR,NAS(NFS)
Interface
Network
10/100M Base-TX Ethernet
Built-in Mic
Supported
Certifications
Certifications
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.0W
Dimensions (L × W × H)
165 × 63 × 62mm (6.5” × 2.5” × 2.5”)
Net Weight
0.39kg (0.86lb)
Material
Metal + plastic
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection
4KV
Ingress Protection
IP67
Reset Button
N/A
]]>
