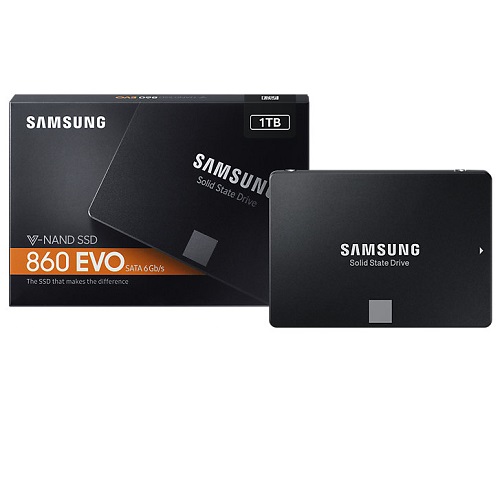

SAMSUNG 860 EVO MZ-76E1T0BW 1TB 550- 520MB/s SSD SATA-3 Disk

General Feature Application Client PCs Capacity 1,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) Form Factor 2.5 inch Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface Dimension (WxHxD) 100 X 69.85 X 6.8 (mm) Weight Max 51.0 g Weight NAND Type Samsung V-NAND 3bit MLC Controller Samsung MJX Controller Cache Memory Samsung 1 GB Low Power DDR4 SDRAM Special Feature TRIM Support TRIM Supported S.M.A.R.T Support S.M.A.R.T Supported GC (Garbage Collection) Auto Garbage Collection Algorithm Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) WWN Support World Wide Name supported Device Sleep Mode Support Yes Performance Sequential Read Up to 550 MB/s Sequential Read * Performance may vary based on system hardware & configuration Sequential Write Up to 520 MB/s Sequential Write * Performance may vary based on system hardware & configuration Random Read (4KB, QD32) Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration Random Write (4KB, QD32) Up to 90,000 IOPS Random Write * Performance may vary based on system hardware & configuration Random Read (4KB, QD1) Up to 10,000 IOPS Random Read * Performance may vary based on system hardware & configuration Random Write (4KB, QD1) Up to 42,000 IOPS Random Write * Performance may vary based on system hardware & configuration Environment Power Consumption *Average: 3.0 W *Maximum: 4.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration Reliability (MTBF) 1.5 Million Hours Reliability (MTBF) Operating Temperature 0 - 70 ? Operating Temperature Shock 1,500 G & 0.5 ms (Half sine) Software Management SW Magician Software for SSD management Installation Kit Not Available

]]>
