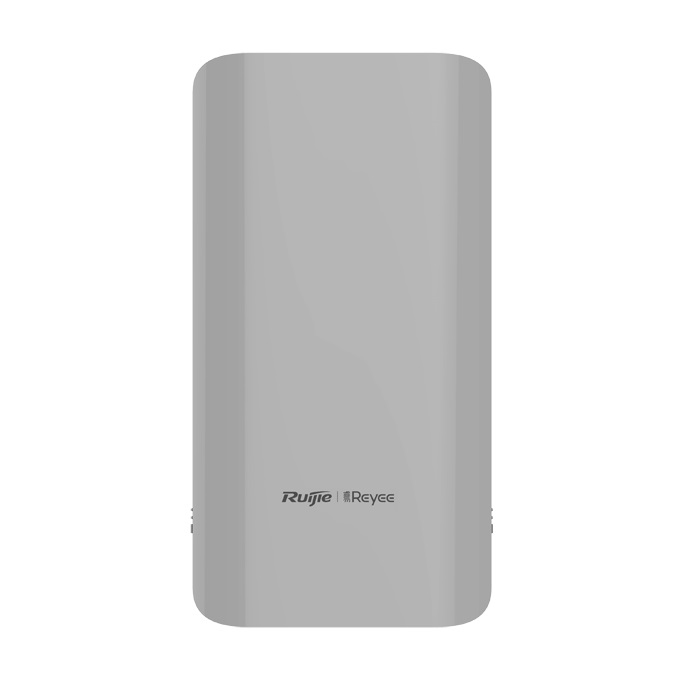

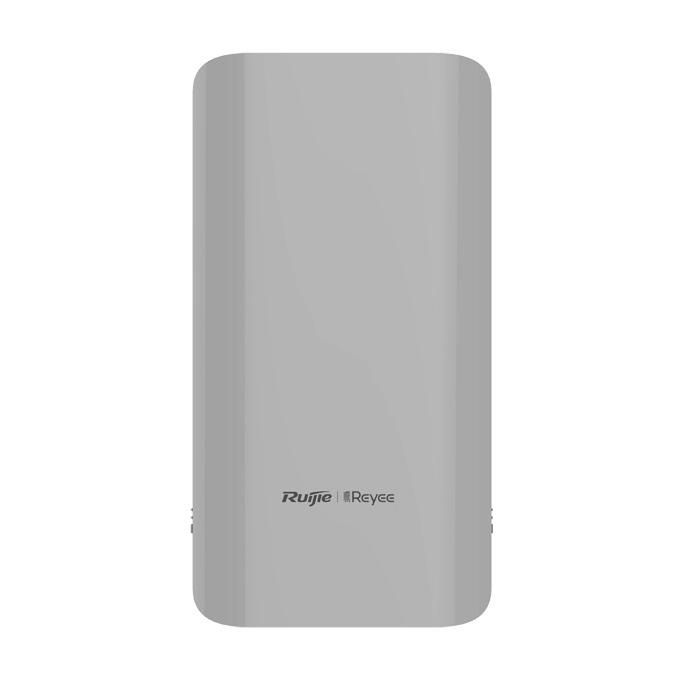

RUIJIE REYEE RG-EST310 10dbi 867mbps 5ghz 5+km Harici Access Point 2-li Set

Model

RG-EST310

Hardware Specifications

RAM/ Flash

64MB/8MB

Radio

Dual-stream single-band 2×2

Operating Band

802.11a/n/ac：5.725～5.850GHz

Antenna

Built-in directional antennas, horizontal: 60°, vertical: 30°, gain: 10dBi

Spatial Streams

2

Maximum Throughput

Up to 867Mbps at 5GHz

Transmit Power

≤250mW

Dimensions

147mm(D)×76mm(W)×37mm(H) (Dimensions per device)

(Same size for the transmitter and receiver,

H: height of the device excluding the mounting kits)

Weight

0.35kg

Ports

1 10/100Base-T Ethernet port, supports 24VDC passive PoE

1 DC port, supports 12VDC power supply

Hardware Button

1 reset button

Status Indicators

System indicator: 1

Port indicator: 1

Bridge signal strength indicators: 3

Power Supply

Support 12VDC power supply and 24VDC passive PoE

Power Consumption

＜5W

Environment

Operating temperature: -30°C～50°C

Storage temperature: -40°C～70°C

Operating humidity: 5% to 95% (non-condensing)

Storage humidity: 5% to 95% (non-condensing)

Installation

Wall-mounted/ Pole-mounted (straps provided)

IP Rating

IP65

Lightning Protection

4KV

Radio Standard

SRRC certification

Warranty

3 Years

Software Features

Zero-Touch Configuration

Support Ruijie Cloud App remote configuration

Automatic Bridging

Support

The recorder-end and camera-end are automatically paired for bridging by default

Device Configuration and Management

Support App/Web monitoring and management

QR Code Login

Users can log in to the device configuration interface by scanning the QR code of the device using the app

Self-healing

Automatic restart upon equipment failure

Automatic Channel Adjustment

Automatically adjust the channel upon power-on

Model

Antenna Polarization

Distance (Meters)

RSSI

(dBm)

Negotiate speed

(Mbps)

Port Speed

(Mbps)

3MP

H.265

 (Units)

4-5MP

H.265

(Units)

6-7MP

H.265

(Units)

RG-EST310

10dBi

H: 60°

V: 30°

100

-52

400

90

16

10

7

500

-65

400

80

16

10

7

1000

-68

240

80

16

10

7

2000

-75

120

40

6

4

3
