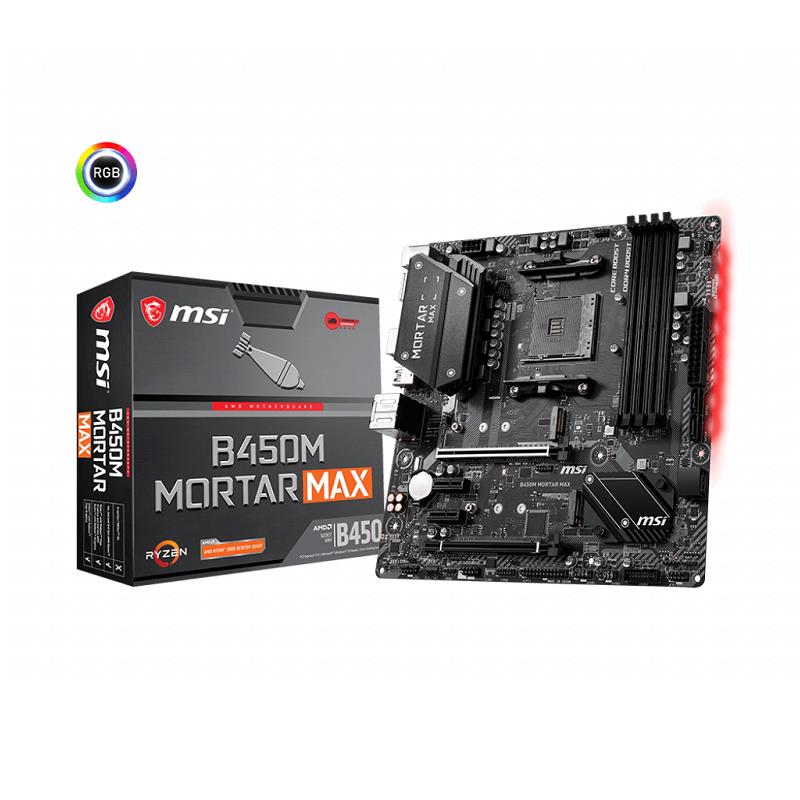

MSI B450M-MORTAR-MAX DDR4 M2 PCIe NVME HDMI DP PCIe 16X v3.0 AM4 mATX

PROCESSOR Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4 See supported processors CHIPSET AMD® B450 Chipset MEMORY 4 x DDR4 memory slots, support up to 64GB Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Please refer to www.msi.com for more information on compatible memory See supported memory SLOTS 1 x PCIe 3.0 x16 slot (PCI_E1) Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 2 x PCIe 2.0 x1 slots2 PCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot.PCI_E2 slot will be unavailable when an expansion card is installed in the PCI_E3 slot. ONBOARD GRAPHICS 1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz1,2 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2 Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorsMaximum shared memory of 2048 MB MULTI-GPU Supports 2-Way AMD® CrossFire™ Technology STORAGE AMD® B450 Chipset 4 x SATA 6Gb/s ports1 1 x M.2 slot (M2_2, Key M)1 Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices AMD® CPU 1 x M.2 slot (M2_1, Key M)*1 Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices PCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot. RAID AMD® B450 Chipset Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe RAID USB AMD® B450 Chipset 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel 2 x USB 3.1 Gen1 (2 ports available through the internal USB 3.1 Gen1 connectors) 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® CPU 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel) AUDIO Realtek® ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output LAN 1 x Realtek® RTL8111H-CG Gigabit LAN controller INTERNAL CONNECTORS 1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (support additional 2 USB 3.1 Gen1 ports) 1 x 4-pin CPU fan connector 3 x 4-pin system fan connectors 2 x 5050 RGB LED strip 12V connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial Port connector 1 x Parallel Port connector BACK PANEL PORTS BIOS FLASHBACK+ Button PS/2 Combo Port DisplayPort LAN Port USB 3.1 Gen2 Type A HD Audio Connectors USB 2.0 Port HDMI Port USB 3.1 Gen1 USB 3.1 Gen2 Type C Optical S/PDIF OUT MSI B450M MORTAR back panel ports DIMENSIONS 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) Micro-ATX Form Factor MOUNTING 8 mounting holes OPERATING SYSTEM Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU

]]>
