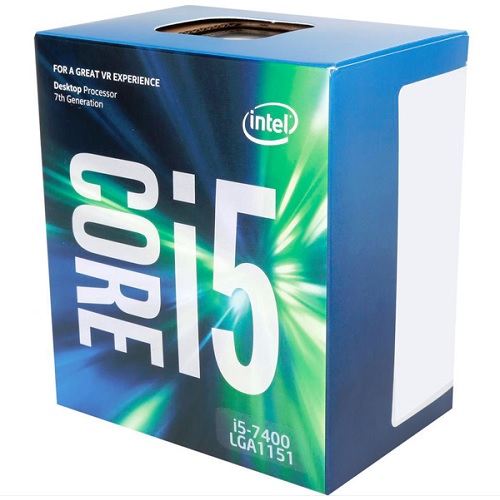

INTEL 1151p Core i5 (Ci5) 7400 3.0ghz 6mb 4çekirdekli Intel® HD Graphics 630 65w (7.nesil Kabylake)

Specifications -Essentials Processor Number i5-7400 Status Launched Launch Date Q1'17 Lithography 14 nm -Performance # of Cores 4 # of Threads 4 Processor Base Frequency 3.00 GHz Max Turbo Frequency 3.50 GHz Cache 6 MB SmartCache Bus Speed 8 GT/s DMI3 # of QPI Links 0 TDP 65 W -Supplemental Information Embedded Options Available No Conflict Free Yes Datasheet Link -Memory Specifications Max Memory Size (dependent on memory type) 64 GB Memory Types DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V Max # of Memory Channels 2 ECC Memory Supported ‡ No -Graphics Specifications Processor Graphics ‡ Intel® HD Graphics 630 Graphics Base Frequency 350.00 MHz Graphics Max Dynamic Frequency 1.00 GHz Graphics Video Max Memory 64 GB 4K Support Yes, at 60Hz Max Resolution (HDMI 1.4)‡ 4096x2304@24Hz Max Resolution (DP)‡ 4096x2304@60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz DirectX* Support 12 OpenGL* Support 4.4 Intel® Quick Sync Video Yes Intel® InTru™ 3D Technology Yes Intel® Clear Video HD Technology Yes Intel® Clear Video Technology Yes # of Displays Supported ‡ 3 Device ID 0x5912 -Expansion Options Scalability 1S Only PCI Express Revision 3.0 PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4 Max # of PCI Express Lanes 16 -Package Specifications Sockets Supported FCLGA1151 Max CPU Configuration 1 Thermal Solution Specification PCG 2015C (65W) TJUNCTION 100°C Package Size 37.5mm x 37.5mm Low Halogen Options Available See MDDS -Advanced Technologies Intel® Turbo Boost Technology ‡ 2.0 Intel® vPro Technology ‡ No Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes Intel® TSX-NI Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions SSE4.1/4.2, AVX 2.0 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Identity Protection Technology ‡ Yes Intel® Stable Image Platform Program (SIPP) No -Intel® Data Protection Technology Intel® AES New Instructions Yes Secure Key Yes Intel® Software Guard Extensions (Intel® SGX) Yes Intel® Memory Protection Extensions (Intel® MPX) Yes -Intel® Platform Protection Technology OS Guard Yes Execute Disable Bit ‡ Yes Intel® Device Protection Technology with Boot Guard Yes

]]>
