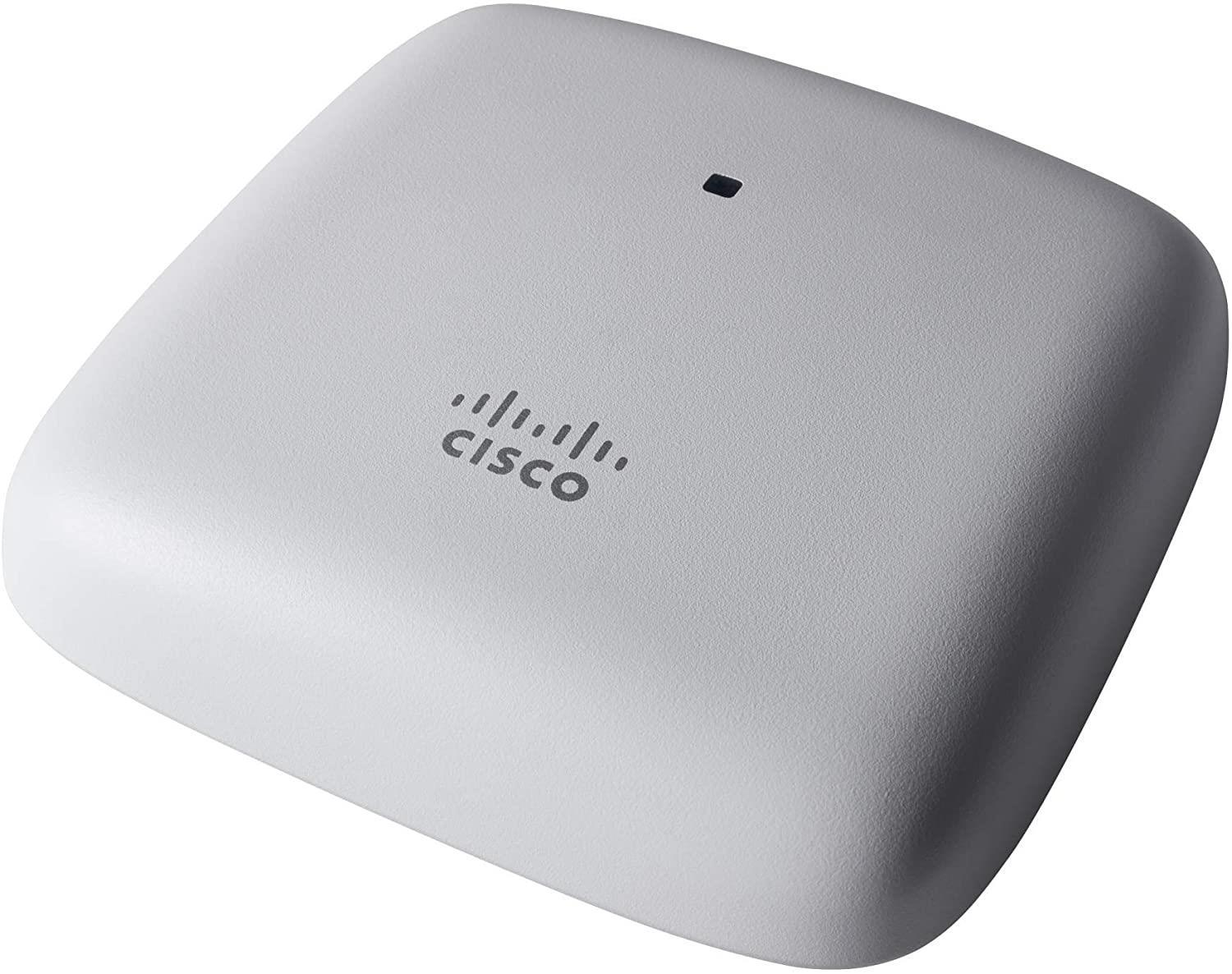

Cisco 140AC 867 Mbps 5 Ghz Access Point
1 ADET
Cisco Business CBW140AC 802.11ac 2x2 Wave 2 Access Point
Authentication and security |
● Wi-Fi Protected Access 2 (WPA2) WPA3 is coming in a post–Frame Check Sequence (FCS) release
● 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
● Segmentation via VLANs (up to 16)
● 802.11r and 802.11i
● Guest network can also authenticate against: Google and *** | |
Maximum clients |
● Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system | |
Maximum # of Access Points |
● 50
● Recommended up to 25 | |
Max # of Mesh Extenders |
● Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops | |
802.11ac |
● 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz
● 20-, 40-, and 80-MHz channels
● Dynamic Frequency Selection (DFS) | |
Ethernet ports |
● Authentication with 802.1X or MAC filtered
● Dynamic VLAN or per port
● Traffic locally switched or tunneled back to Master AP | |
Data rates supported |
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps | |
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps | ||
802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40) | ||
802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9) | ||
Maximum number of nonoverlapping channels |
A (A regulatory domain): ● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels
B (B regulatory domain): ● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.720 GHz; 12 channels
● 5.745 to 5.825 GHz; 5 channels
C (C regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.745 to 5.825 GHz; 5 channels
D (D regulatory domain): ● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels
E (E regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz) F (F regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.745 to 5.805 GHz; 4 channels
G (G regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.745 to 5.865 GHz; 7 channels
H (H regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels
I (I regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels |
K (K regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.620 GHz; 7 channels
● 5.745 to 5.805 GHz; 4 channels
N (N regulatory domain): ● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels
Q (Q regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 11 channels
R (R regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.660 to 5.700 GHz; 3 channels
● S5.745 to 5.805 GHz; 4 channels
S (S regulatory domain): ● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 11 channels
● 5.745 to 5.825 GHz; 5 channels
T (T regulatory domain): ● 2.412 to 2.462 GHz; 11 channels
● 5.280 to 5.320 GHz; 3 channels
● 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels
Z (Z regulatory domain): ● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels |
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. | ||
Available transmit power settings |
2.4 GHz Up to 20 dBm |
5 GHz Up to 20 dBm |
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details. | ||
Integrated antennas |
● 2.4 GHz, gain 2 dBi
● 5 GHz, gain 4 dBi | |
Interfaces |
● 1x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE)
● RJ-45 console port (not functional) | |
Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors | |
Dimensions (W x L x H) |
● Access point (without mounting bracket): 6 x 6 x 1.3 in. (150.8 x 150.8 x 33 mm) | |
Weight |
● Access point without mounting bracket or any other accessories: 14 oz (400 g) | |
Environmental |
● Operating
◦ Temperature: 32° to 104°F (0° to 50°C) ◦ Humidity: 10% to 90% (noncondensing) ◦ Maximum altitude: 9843 ft (3000 m) at 40°C ● Nonoperating (storage and transportation)
◦ Temperature: –22° to 158°F (-30° to 70°C) ◦ Humidity: 10% to 90% (noncondensing) ◦ Maximum altitude: 15,000 ft (4500 m) at 25°C | |
System |
● 1 GB DRAM, 256 MB flash
● 710-MHz quad core processor | |
Powering options |
● 802.3af/at Ethernet switch; a Cisco Business switch with PoE is recommended
● Optional Cisco Business PoE injector | |
Power draw |
● 8.3W (maximum, on PoE) | |
Mounting and physical security |
Included with the access point: ● Mounting bracket
● Torx security screw
● Ceiling rail mount clip | |
Warranty |
Cisco Business limited lifetime hardware warranty Free software updates, no service contract required |
