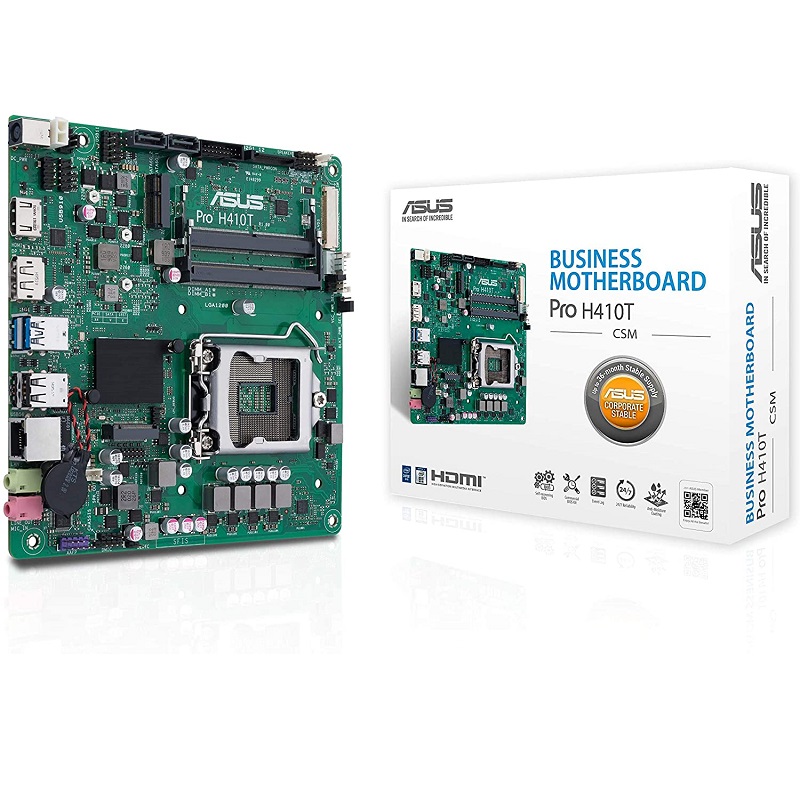

ASUS PRO H410T/CSM DDR4 SATA2 M2 PCIE NVME HDMI-DP PCIE YOK 1200p mITX

Intel® Socket 1200 for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Supports CPU up to 65 W
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H410

Memory

2 x SO-DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor *¹
1  x DisplayPort 1.4 **
1  x HDMI 1.4b
1  x LVDS
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

Expansion Slots

Intel® H410 Chipset
1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode*
* The Wi-Fi/BT module is purchased separately

Storage

Total supports 1 x M.2 slot(s) and 2 x SATA 6Gb/s ports
Intel® H410 Chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
2 x SATA 6Gb/s port(s)

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
ASUS LANGuard

Audio

Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *²
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

USB Ports

Rear USB Port ( Total 4  )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 7  )
2 x USB 3.2 Gen 1 port(s)
5 x USB 2.0 port(s)

Special Features

Bespoke Motherboard Design & Business Focused Features :
- Overcurrent Protection: Short circuit prevention, protects your system
- ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
- ASUS Event Log: Record activities of system and provides information in BIOS
- ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
- Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
- 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
Easy Assembly Design:
- Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage

Operating System Support

Windows® 10 64-bit

Back I/O Ports

1 x Realtek RTL8111H 1Gb Ethernet
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
2 x Audio jack(s)
1 x DC power connector(s)

Internal I/O Ports

1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode
1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x4 mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x SATA power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x 2-pin internal DC power connector
1 x Stereo speaker connector
1 x DMIC header
1 x Backlight inverter voltage selection header
1 x FPD brightness header
1 x Panel voltage selection header
1 x Panel off header
1 x LVDS connector(s)
1 x System panel connector
1 x LPC Debug header
1 x Speaker connector

Accessories

User´s manual
1 x ACC Express Activation Key Card
I/O Shield
Thin Mini ITX I/O Shield
1 x SATA power cable
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME

Form Factor

Thin Mini ITX Form Factor
6.7  inch x 6.7  inch ( 17  cm x 17  cm )

Note

*1: Supports up to 2 displays simultaneously
*2: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
