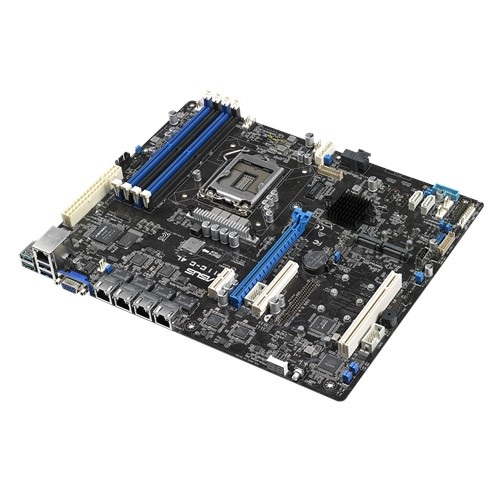

Intel^® Xeon^® E ATX server motherboard with rack-optimized design and quad networking

• Powered by the Intel^® Xeon^® E platform
• 95W CPU and up to 128GB memory support (4 DIMMs)
• Rack-optimized design maximizes cooling for excellent thermal efficiency
• Flexible expandability with 6 SATA HDDs, 2 PCIe Gen3 slots and 1 PCI legacy slot
• Quad Intel^® I210AT Gigabit Ethernet with teaming support
• Dual M.2 for up to 32Gbps performance and data redundancy
• High-speed mini-SAS HD connections
• TPM 2.0 Ready secures store keys, digital certificates, passwords and data
• Complete server management with ASUS Control Center
• Optional ASMB9-iKVM module available for 24/7 remote monitoring and diagnostics

• Processor / System Bus

  1 x Socket LGA1151
  Intel^® Xeon^® processor E-2100 family
  Intel^® Xeon^® processor E-2200 family
  The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor

• Core Logic

  Intel® C242 Chipset

• Memory

  Total Slots : 4 (2-channel)
  Capacity : Maximum up to 128GB UDIMM
  Memory Type :
  DDR4 2666/2400 UDIMM non ECC and with ECC
  Memory Size :
  32GB, 16GB, 8GB, 4GB
  * Refer to support page for more information

• Expansion Slots

  Total Slot : 3
  Slot Location 1 : PCI 32bit/33MHz
  Slot Location 5 : PCI-E x8
  Slot Location 6 : PCI-E x16
  Slot Location 7 : MIO Slot for Audio card
  Follow SSI Location#

• Form Factor

  ATX (12"x9.6", 305mm x 244mm)

• ASUS Features

  FAN speed control
  Rack Ready (Rack and Pedestal dual use)
  ASUS Control Center

• Storage

  SATA Controller :
  Intel® C242 Chipset
  6 x SATA3 6Gb/s ports
  2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *¹
  Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
  (Support Software RAID 0, 1, 5, 10 )
  SAS Controller :
  ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
  ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)

• Networking

  4 x Intel® I210AT + 1 x Mgmt LAN

• Graphic

  Aspeed AST2500 with 32MB VRAM

• On Board I/O

  1 x TPM header
  1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
  1 x COM port
  1 x USB 3.0 pin header
  1 x USB 2.0 pin header
  1 x USB connector*²
  6 x Fan Header , 4pin
  1 x SMBus
  1 x Chassis Intruder
  4 x Front LAN LED
  2 x Serial Port Header
  1 x VGA Header
  2 x M.2 Connector
  1 x Onboard header for optional management card

• Back I/O Ports

  1 x External Serial Port
  2 x USB 3.1 Gen 2
  2 x USB 3.1 Gen 1
  1 x VGA Port
  4 x GbE LAN + 1 x Mgmt LAN

• Management Solution

  ASUS Control Center
  Optional ASMB9-iKVM for KVM-over-Internet

• Weight

  Gift Box (1-in-1)
  Net Weight : 0.76 KG
  Gross Weight : 1.3 KG

  Bulk Pack (10-in-1)
  Net Weight : 6.9 KG
  Gross Weight : 9.5 KG

• Environment

  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)

• Accessories

  Gift Box (1-in-1)
  2 x Support CD
  1 x I/O shield
  6 x SATA 6G cables
  1 x Plate for LGA1151

  Bulk Pack (10-in-1)
  2 x Support CD
  1 x I/O shield
  1 x Plate for LGA1151

• Monitoring

  CPU Temperature
  Fan RPM

• Note

  *1 2 x M.2 (NGFF 22110/2280/2260/2242, support PCIE or SATA signal, gray SATA port will disable when M.2 is SATA signal)
  *2 1 x USB 3.0 connector (Type A USB socket)
